| Allmänt |

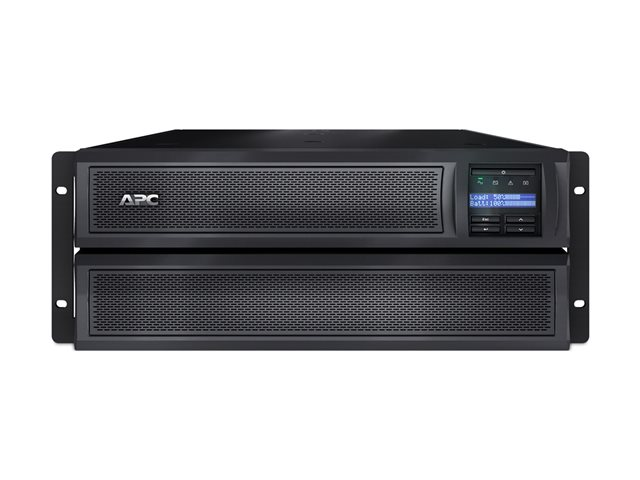

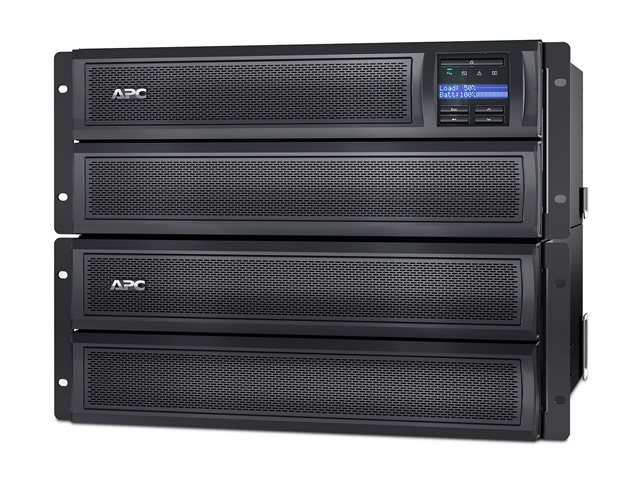

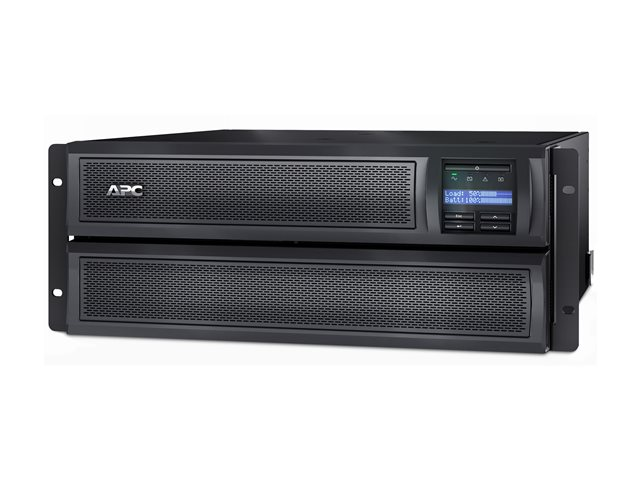

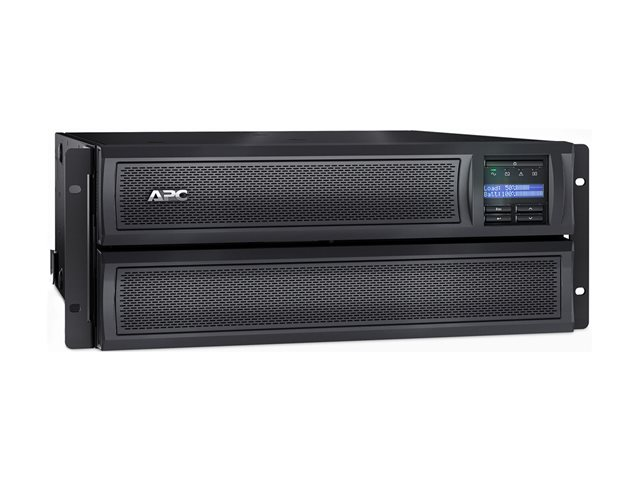

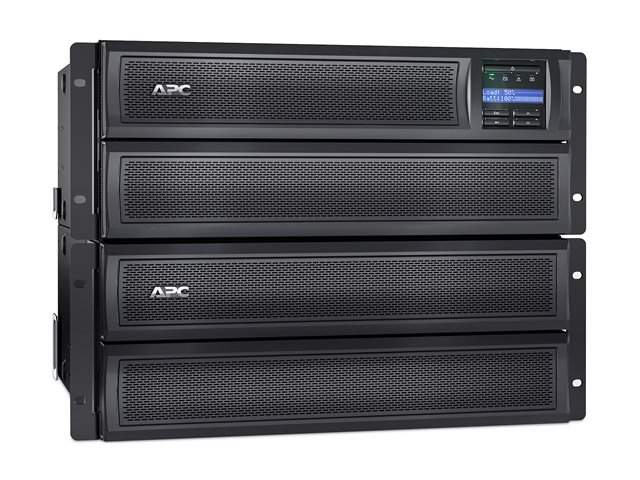

| Typ av enhet | UPS - rackmonterbar/extern |
| Batterityp | Intern |
| Höjd (U-format) | 4U |
| Färg | Svart |
| Lokalisering | Kanada, Förenta Staterna |
| Nätdel |
| UPS-teknik | Interaktiv |
| Inspänning | AC 120 V |
| Inspänningens område | Växelström 70 - 153 V |
| Tillhandahållen frekvens | 47 - 53 / 57 - 63 Hz |
| Erforderlig frekvens | 50/60 Hz |
| Inmatningsanslutningar | 1 x ström, NEMA L5-30 |

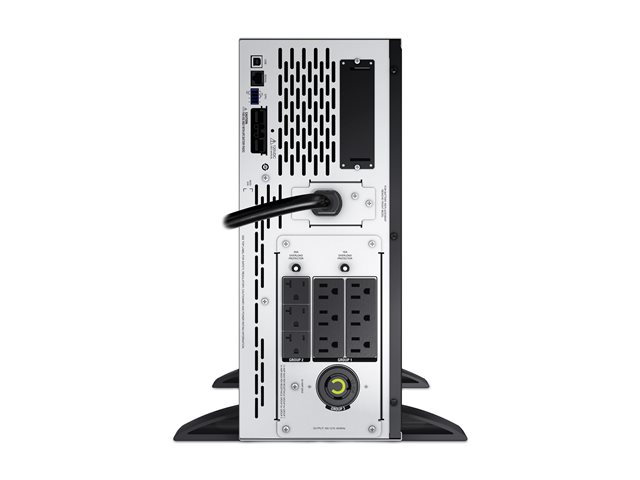

| Kontaktdetaljer för uteffekt | 6 x power NEMA 5-15R
3 x ström NEMA 5-20R
1 x ström NEMA L5-30R |
| Utspänning | AC 120 V ± 5% - 47 - 53 / 57 - 63 Hz |
| Effektkapacitet | 2700 Watt / 3000 VA |
| Utvågform | Sinusvåg |
| Spänningsavledning | Ja |
| Energivärdering | 540 joule |
| Batteri |
| Antal | 1 |
| Teknik | Bly-syra |
| Runtime (upp till) | 6 min vid full laddning
18 min vid halv maskin |
| Laddningstid | 3 timmar |
| Transfertid | 2 ms |
| Nätverk |
| Gränssnitt för fjärradministration | RS-232, USB |
| Expansion/Anslutning |
| Gränssnitt | 1 x hantering (RS-232) - 9 pin D-Sub (DB-9)
1 x hantering (USB) - 4-stifts USB typ B
1 x EPO (emergency power off) |
| Expansionskortplatser | 1 (totalt)/ 1 (ledig) x SmartSlot |
| Diverse |

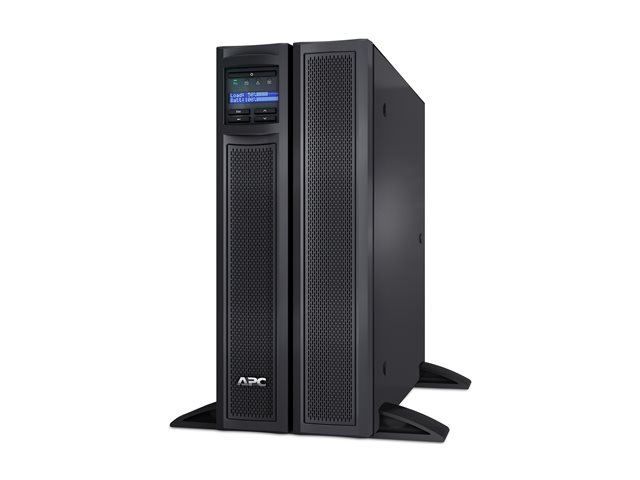

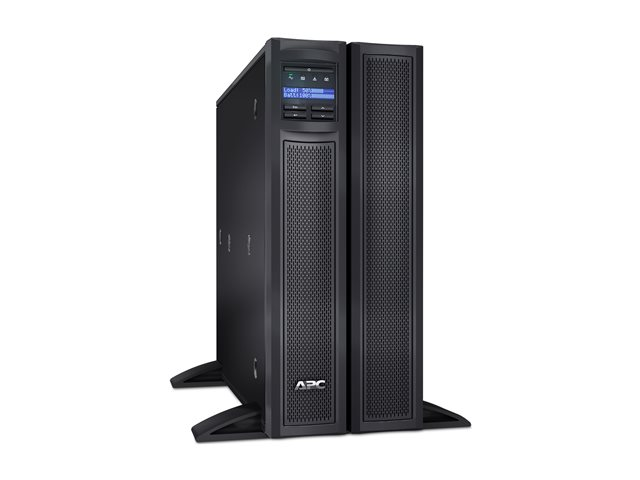

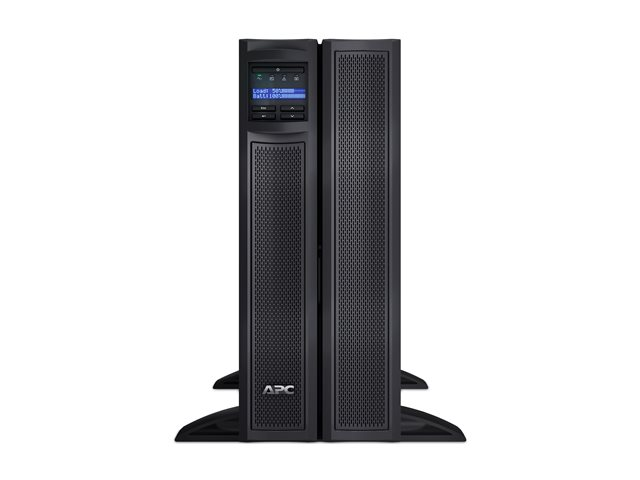

| Inkluderade tillbehör | Tornställ |
| Medföljande kablar | Seriell kabel - extern
USB-kabel - extern
Strömkabel 2.44 m |
| Rackmonteringssats | Inkluderat |
| Egenskaper | Hörbart larm, LCD-bildskärm, Automatisk spänningsreglering (AVR), LED-indikatorer, hotswap-batterier |
| Standarder som följs | CSA, TUV, BSMI, NOM, UL 1449, UL 1778, EN55022 klass A, EN 50091-2, RoHS, FCC Part 15 A, REACH, VCCI Class A |
| Programvara / Systemkrav |
| Medföljande programvara | Drivrutiner och hjälpprogram |
| Tillverkarens garanti |
| Service och support | Begränsad garanti - 3 år
Begränsad garanti - batterier - 2 år |
| Miljöparametrar |
| Min temperatur vid drift | 0 °C |
| Max temperatur vid drift | 40 °C |
| Luftfuktighet vid drift | 0 - 95% |
| Ljudnivå | 55 dBA |
| Mått och vikt |
| Bredd | 48.3 cm |
| Djup | 43.2 cm |
| Höjd | 17.8 cm |
| Vikt | 38.64 kg |
| Mått och vikt (brutto) |
| Emballagets bredd | 58.6 cm |
| Emballagets djup | 63.3 cm |
| Emballagets höjd | 33 cm |
| Emballagets vikt | 47.73 kg |
| Kompatibilitetsinformation |
| Designat för | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC, SMX2000LVNC, SMX2000LVUS, SMX3000HVTUS, SRT1000RMXLA-NC, SU2200R3X167, SYAF8KRMTX424 |
|
